MPPT 100AMP 60A Solar Charge Controller For 12V 24V 36V 48V DC Battery
RegulatorUSD $139.02
Condition : New
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
5200W 100A MPPT Solar Charge Controller 12V/24V/36V/48V Battery PV Regulator USB Product Feature
1. Multiple Protection Functions：Protection for overcharge, reverse current, overheat and reverse wiring.
2. 99% MPPT Charging Efficiency:Using innovative MPPT technology, charging efficiency UP to 99%, Fully utilize the power potential of solar panels.
3.MPPT CHARGING CONTROLLER：4-stage battery charging algorithm for a rapid, efficient , safe charging(Bulk Charge, Boost Charge, Float Charge,and Equalization)
4. Fit for USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)/Vented/Flooded/Sealed/Gel/NiCd battery.User programmable for absorption voltage/Floating voltage/Low voltage disconnect./Load Timer. Real-time energy recording.
5. Fit for solar Panel:1300W(12V);2600W(24V);3900W(36V);5200W(48V); MPPT best working voltage range: DC18V-DC80V(12V);DC30V-DC100V(24V);DC65V-DC150V(48V)
6. Blacklight LCD Dispaly PV voltage/output power/Battery voltage/charging current/working mode/Temperature, ☀ TROUBLESHOOTING function and LCD display and can help users not only check the whole system operating data and statuses but also quickly identify system faults and modify parameters.
7. Mute and Excellent Heat Dissipation: Integrated heat sink, instead of cooling fan, provides a 0 dB surrounding for relax and ensures maximum charging efficiency and safety.
8. Compact in Size：Which makes it easy to install virtually anywhere. 9. 30A & 60A Controller With Dual USB Port 5V/2A: The solar charging controller adopts a dual USB Charging ports design, which can charge two devices simultaneously and supports most USB Port devices, such as mobile phones, tablets, PSP game consoles, etc.
Product Specification： * Display mode：LCD
* Color：Grey
* Material：PC+Aluminum Alloy
* Waterproof rating: IP30
* Aperture for installation:ф5mm
* Battery Over Voltage Protection:Lead-acid battery 16V
* Light control voltage:5V/10V/15V/20V
* Static loss：<50MA
* Temperature Compensation:-4mV/℃ for 12V system
* Light control voltage: 5V
* Temperature Compensation Coefficient: -4mV/°C/2V(25°C)
* Charge loop voltage drop: ≤0.2v
* LCD Temperature: -20°C~+70°c
* Operating Temperature: -20°C~+55°C (To run at full rated current continuously)
* Working humidity: ≤90% No condensation
* Grounded type:Positive grounded
* Battery type: User defalt,GEL,SLD,FLD,LiFePO4,Li(NiCoMn)O2 Charging control mode: MPPT * Rated Charge Current: 100A * System voltage: 12V/24V/36V/48V AUTO * Max PV open circuit voltage : 150V * PV max input power:1300W(12V) 2600W(24V) 3900W(36V) 5200W(48V) * Dimension：263*192*111mm/10.35*7.59*4.37 inch
* Installation size:215mm*180mm / 8.46*7.09 inch * Rated Charge Current: 60A * System voltage: 12V/24V AUTO
* USB output：2 USB [5V/2A] * Maximum PV open circuit voltage : 75V * PV max input power:780W(12V) 1560W(24V) * Dimension：194*123*60mm / 7.64*4.84*2.36 inch
* Installation size:140mm*118mm / 5.51*4.64 inch * Rated Charge Current: 30A * System voltage: 12V/24V AUTO
* USB output：2 USB [5V/2A] * Maximum PV open circuit voltage : 60V * PV max input power:390W(12V) 780W(24V) * Dimension：179*123*50mm / 7.0*4.84*1.97 inch
* Installation size:140mm*118mm / 5.51*4.64 inch
【Float charge】: Maintenance-free lead-acid battery, GEL, lead-acid Flooded battery:13.8V
【Absorption charge】: Maintenance-free lead-acid battery:14.4V,
GEL:NO, lead-acid Flooded battery:14.6V, Duration:2hours
【Equalization charge】: Maintenance-free lead-acid battery:14.6V,
GEL:NO; lead-acid Flooded battery:14.8V, Duration:2hours
【Load disconnection(LVD)】: Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:10.8V
【Load reconnection(LVR)】: Maintenance-free lead-acid battery，GEL，lead-acid Flooded battery:12.6V
Products Include:
1x Solar Controller
1x User Manual ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PWM - 30A -12V/24V[Dual USB Port] Product Feature

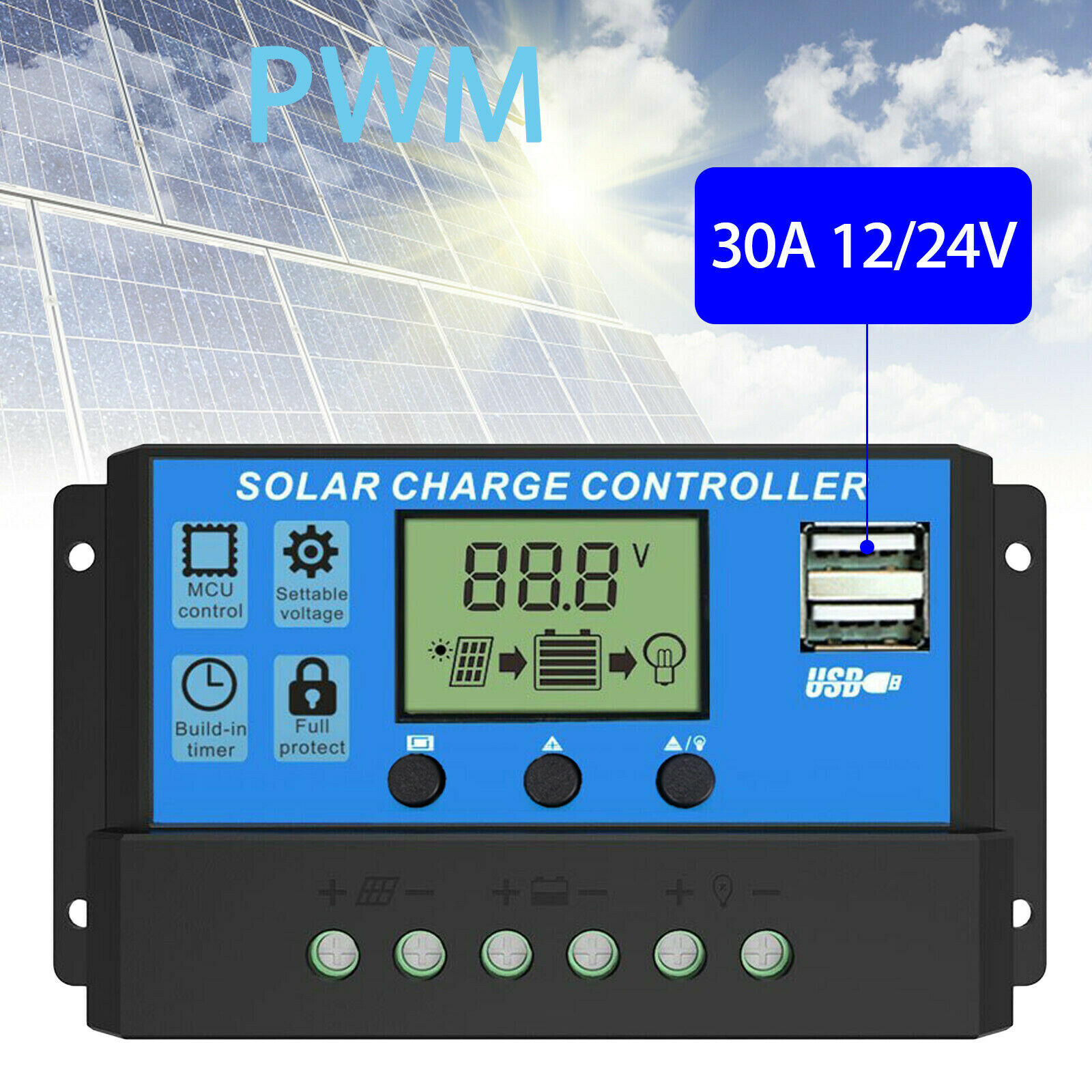

1.【Multiple Protection Functions】：Protection for overcharge, reverse current, overheat and reverse wiring.
2. 【UPGRADED SOLAR CHARGE CONTROLLER】: Auto detects 12V 24V system, Max PV input voltage 50 volts, Max. Input Power: 30A: 390W(12V) 780W(24V).
3. 【Dual USB Port】: Built-in Dual USB output 5V/2A, charging for your mobile phone, tablet, and PCs.
4. 【3-STAGE PWM Technology】: The controller is equipped with advanced smart PWM technology with high charging efficiency, through three stages of charge modes(Direct, boost, float), fast, efficient, and safe battery charge, effectively extending the battery life; the combination of solar light control and time control, freely adjust the load enable duration.
5. 【Various battery COMPATIBILITY】: Compatible with various 12v 24V batteries, such as ternary lithium battery, lithium iron phosphate battery, gel battery, sealed battery, open battery, etc.
6.【LCD Display】: Large LCD display, easy to read the data.
7.【Mute and Excellent Heat Dissipation】: Integrated heat sink, instead of cooling fan, provides a 0 dB surrounding for relax and ensures maximum charging efficiency and safety.
8.【Compact in Size】：Which makes it easy to install virtually anywhere.
Product Parameter
Display mode：LCD
System voltage: 12V/24V AUTO
Rated Charge Current: 30A
Maximum PV open circuit voltage : 50V
PV maximuminput power:390W(12V) 780(24V)
Colour：Blue
Material：PC+Aluminum Alloy
Waterproof rating: IP32
Dimension：135x70x35mm/5.31”*2.75”*1.38”
self-consumption：<12MA
Dual USB output：5V/2A
Working temperature range：-35℃-60℃
Temperature Compensation：-24mV/℃ for 12V system
Battery Type: Lithium batteries, customization, GEL,SLD,FLD
Load control mode: 24 hours work, light control, light and timing control
Charging control mode:PWM
Float charge:13.7V / 27.4V
Equalization charge:12.6V-14.4V / 25.2V-28.8V
Load disconnection(LVD):10.0V-10.4V / 20V-20.8V
Load reconnection(LVR):11V-11.6V / 22V-23.2V
Battery Over Voltage Protection：16.5V / 33V
Products Include
1x Solar Controller
